Flecto Sense

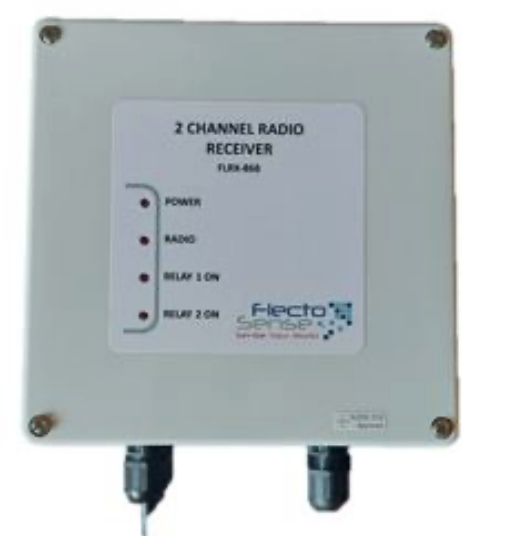

Lora 2 Channel Radio Switch Receiver

Lora 2 Channel Radio Switch Receiver

Regular price $120.00
Regular price Sale price $120.00
Sale Sold out
Tax included.
This Receiver Unit designed to receive and mirror the status of the two inputs from the corresponding Transmitter Unit. The fail-safe function adds an extra layer of safety by automatically returning the outputs to a default state in case of communication issues.
View full details

Lora 2 Channel Radio Switch Receiver

Key features

  • Outputs: Two relay outputs (1 and 2) that mirror the status of the Transmitter Unit's inputs.
  • Relay Contact Rating: Rated for 10A AC on the relay contacts, with a recommendation not to exceed loads higher than 8A.
  • Power Requirement: No need for a backup battery. The unit immediately receives input status from the Transmitter Unit when powered.
  • Fail-Safe Function: If the Receiver Unit fails to receive a radio message from the Transmitter Unit and the outputs (1, 2, or both) are energized, a fail-safe function is triggered. In this case, the outputs will return to their normal state, and the output relays will be de-energized after 65 seconds. This feature helps ensure a safe state in case of communication failure. Indicator
  • LEDs: Includes indicator LEDs, likely to show the status of the outputs or the communication status.

Downloads

Functional Specification Flecto 2Channel Radio Switch

The Flecto Sense Concentrator

The concentrator facilitates AMR (Automatic Meter Reading) to read meters on fixed network, walk-by or drive-by modes. The FSC works with all Kamstrup WMBus devices and the whole range of Flecto Sense WMBus products..

The system is unique in the way the data is always encrypted. You can count on accurate readings, timely responses, data that you can use and report the way you want to.

The FSC records all the WMBus information four times an hour. These readings get sent to the Flecto Backend server where the data is stored for 32 days. The data can be viewed, exported, displayed, printed or imported into other systems. Standard integration via REST API or web portal access from smartphones, tablets and computers.
